30 Series Pressure Calibrator

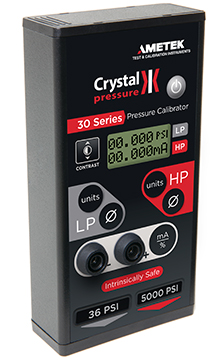

30 Series Digital Pressure Calibrator
Calibration tool box in the palm of your hand!

The 30 Series is a wide range digital pressure calibrator that fits easily into your shirt pocket. Its internal sensors give you 0.05% of reading accuracy and resist damage from overpressure.

• Wide pressure range can measure vacuum and pressure up to 5000 psi (300 bar)
• Indicates milliamps to calibrate transmitters
• Ultra compact and light
• Very easy to learn and use
• Battery operated
• Brings laboratory accuracy to outdoor field conditions

  • Documentation +

  • Options +

      • -SPSS Stainless Steel Manifolds – All high pressure sensors come with a stainless steel manifold. Some applications require that the second sensor be stainless steel as well.
      • CrystalCare Crystal Care Program (US and Canada customers only) – A 3-year full warranty program covering virtually any failure and an annual A2LA accredited calibration certificate with test data recorded at 5 different temperatures – proving that it meets published specifications over the entire operating range.
      • B Absolute Pressure – Available for gauges rated at 2000 psi or higher. Add a B to the units to designate the absolute version (for example 2KPSIBXP2I).
      • -N CPF NPT Fitting Kit (Part Number 4013) Includes MPF-1/8QTF, MPF-1/4QTF, and MPF-1/2QTF)
      • -B CPF BSP Fitting Kit (Part Number 4015) Includes MPF-1/8BSPF, MPF-1/4BSPF, MPF-3/8BSPF, and MPF-1/2BSPF)
    • System A & B Pump Systems
      System A
      • AHX Pump System: Includes a T-970 pneumatic hand pump (0 to 580 psi / 40 bar)
      • AXX Pump System: Includes a T-960 pneumatic hand pump (0 to 30 psi / 2 bar)
    • System A & B Pump Systems
      System B
      • BHX Pump System: Includes a T-975 pneumatic hand pump (-25 inHg to 580 psi / - 0.91 to 40 bar)
      • BXX Pump System: Includes a T-965 pneumatic hand pump (-25 inHg to 30 psi / - 0.91 to 2 bar)
    • System C Pump System
      System C
      • CHX Pump System: Includes a T-620H Hydraulic Hand Pump (0 to 5000 psi)
      • CXX Pump System: Includes a T-620 Hydraulic Hand Pump (0 to 3000 psi)
    • System D Pump System
      System D
      • DOX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with oil)
      • DWX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with water)
    • System E
      System E
      • EOX Pump System: Includes a P-014 hydraulic bench top pump (0 to 10 000 psi, for use with oil)
    • System F Pump System
      System F
      • FOV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with oil)
      • FWV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with water)
    • System G Pump Systems
      System G
      • GOX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with oil)
      • GWX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with water)
    • System H Pump Systems
      System H
      • HOX Pump System: Includes a T-975 Pneumatic Hand Pump (-25 inHg to 580 psi / - 0.91 to 40 bar) and a T-620H Hydraulic Hand Pump (0 to 5000 psi / 350 bar)
  • Accessories +

      • 24VDCPS 24 Volt External Power Supply
      • 5203 Magnetic Hanging Strap for XP2i, m1, 30 Series, and HPC40 Series
      • 2490 Soft Carrying Case (included) – The clear plastic cover protects the keypad while allowing operation of all buttons.
      • 3009 Hard Carrying Case – egg crate foam
      • 2888 Weatherproof Hard Carrying Case – die cut foam
      • 4431 USB A to Micro USB Cable for 30 Series (6ft)
      • 1351 Test Lead Kit.
  • Software +

    • ConFigM30

      ConfiM30 (Free) – Allows you to customize your calibrator by adding or disabling features

    • LabVIEW Driver

      LabVIEW (Free) – If using LabVIEW, the driver library implements the serial commands of the Model 30 and provides parsing of the streaming data output

    • FastCalXP

      FastCalXP – Calibration software that allows you to do a 10 point up and down calibration in less than 3 minutes.

    • USB Driver

      USB Driver for XP2i, nVision, and 30 Series

    • UnitCalc

      UnitCalc (Free) – Easy pressure unit calculator. Displays all conversion factors and converted units at the same time. UnitCalc also calculates Head Correction, Gravity Correction, and Air Density
