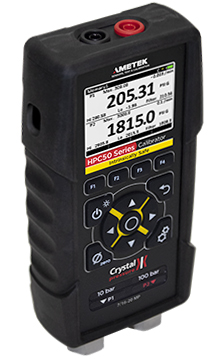

HPC50 Series Pressure Calibrator

The HPC50 handheld pressure calibrator is an intrinsically safe, dual pressure calibrator with options to add an additional two external pressure or temperature modules. The HPC50 pressure calibrator combines the features you love from the HPC40 with improvements like, better battery life an improved display, an extra external module connection, and of course intrinsic safety.

The HPC50 series pressure calibrator is fully temperature compensated for pressure, temperature, and electrical measurements from -20 to 50°C.

• 0.035% of Reading Accuracy
• Gauge, Absolute, and Differential Pressure to 10,000 psi / 700 bar / 70 MPa
• Advanced Simplicity "Non-Menu" Interface
• Measure Sink mA and V
• High Accuracy Thermometer with "True Ohm" Technology
• Store & Recall Previously Used Screens

Combine the HPC50 Series with any of our ready to use pump systems, to provide a complete calibration kit.


  • Documentation +

  • Video +

    ProductVideoMessage

  • Options +

      • BARO BARO Module – Converts gauge pressure measurement to the absolute scale.
      • -N CPF NPT Fitting Kit (Part Number 4013) Includes MPF-1/8QTF, MPF-1/4QTF, and MPF-1/2QTF)
      • -B CPF BSP Fitting Kit (Part Number 4015) Includes MPF-1/8BSPF, MPF-1/4BSPF, MPF-3/8BSPF, and MPF-1/2BSPF)
    • System A & B Pump Systems
      System A
      • AHX Pump System: Includes a T-970 pneumatic hand pump (0 to 580 psi / 40 bar)
      • AXX Pump System: Includes a T-960 pneumatic hand pump (0 to 30 psi / 2 bar)
    • System A & B Pump Systems
      System B
      • BHX Pump System: Includes a T-975 pneumatic hand pump (-25 inHg to 580 psi / - 0.91 to 40 bar)
      • BXX Pump System: Includes a T-965 pneumatic hand pump (-25 inHg to 30 psi / - 0.91 to 2 bar)
    • System C Pump System
      System C
      • CHX Pump System: Includes a T-620H Hydraulic Hand Pump (0 to 5000 psi)
      • CXX Pump System: Includes a T-620 Hydraulic Hand Pump (0 to 3000 psi)
    • System D Pump System
      System D
      • DOX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with oil)
      • DWX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with water)
    • System E
      System E
      • EOX Pump System: Includes a P-014 hydraulic bench top pump (0 to 10 000 psi, for use with oil)
    • System F Pump System
      System F
      • FOV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with oil)
      • FWV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with water)
    • System G Pump Systems
      System G
      • GOX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with oil)
      • GWX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with water)
    • System H Pump Systems
      System H
      • HOX Pump System: Includes a T-975 Pneumatic Hand Pump (-25 inHg to 580 psi / - 0.91 to 40 bar) and a T-620H Hydraulic Hand Pump (0 to 5000 psi / 350 bar)
  • Accessories +

      • APMi-Pressure-Modules 8 ranges from vacuum to 15 000 psi / 1000 bar
      • ATMi-Temperature-Module Add temperature measurement to the HPC50 Series
      • 3368 Test Lead Kit (included)
      • 6215 Protective Boot (included)
      • 3951 USB A to Mini USB Cable for HPC40 Series, HPC50 Series, and nVision (included)
      • 5203 Magnetic Hanging Strap for XP2i, m1, 30 Series, HPC40 Series, and HPC50 Series
      • 3009 Hard Carrying Case – egg crate foam
      • 2888 Weatherproof Hard Carrying Case – die cut foam
      • 128955 RTD Probe, Pt100
  • Software +

    • CrystalControl

      CrystalControl – Free Software, Communicate, Configure, Data Log, and Update your HPC40 & HPC50 Series

    • UnitCalc

      UnitCalc (Free) – Easy pressure unit calculator. Displays all conversion factors and converted units at the same time. UnitCalc also calculates Head Correction, Gravity Correction, and Air Density

  • Release Notes +

      • Version R160009 12-Nov-19. Fixed: 1) An error when a selected unit of measure is removed via CrystalControl, 2) The zero function key lavels for P1, P2, Ext. Mod. 1, and Ext. Mod. 2 are no longer cutoff.
      • Version R160007 11-Oct-19. Fixed: 1) An error with non-Celsius differential temperature measurement, 2) Resistance measurements on the dual temperature screen, 3) Removed the switch test from the lower display when dual temperature is on the upper display.
      • Version R160005 08-Oct-19. Added: 1) Support for a JOFRA Reference Sensor when it's connected to an ATMi. 2) Dual temperature display mode matching the dual pressure display mode. 3) Support for available units on a connected APMi. 4) Differential temperature now uses 0.01 as the resolution. Fixed: 1) Improved connection and file transfer time when connecting an HPC50 Series to a computer, 2) Improved HPC50 Series behavior when connected to a computer and an ATMI or APMi, 3) With two ATMi's connected to an HPC50 Series, it will no longer synchronize readings until the temperature is different by 0.5°C.
      • Version R16003 15-Jul-19. New or Enhanced Features: 1) All references to APMi or ATMi in menus were replaced by "Ext. Mod. 1" or "Ext. Mod. 2", 2) Added differential temperature mode to compute the difference between two ATMi measurements, and 3) Reduced the connection time of an ATMi and APMi when connected to the chassis. Fixed: 1) ATMi will now display +OL at 110% of the limit.
      • Version R16001 Initial Release
