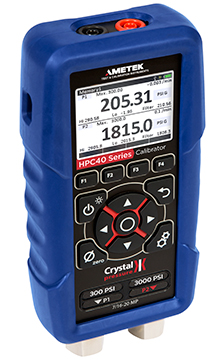

HPC40 Series Pressure Calibrator

HPC40 Series Pressure Calibrator
The HPC40 Series handheld pressure calibrator is the world's first combined pressure and mA loop calibrator to be fully temperature compensated from -20 to 50°C. You can count on the same accuracy whether measuring pressure, current, voltage, or temperature.

• 0.035% of Reading Accuracy
• Gauge, Absolute, and Differential Pressure to 15,000 psi / 1000 bar / 100 MPa
• Advanced Simplicity "Non-Menu" Interface
• Measure & Source mA with External Loop Power or Internal 24 VDC Power Supply
• High Accuracy Thermometer with "True Ohm" Technology
• Store & Recall Previously Used Screens
• Flexible Power Options Including Rechargeable

Combine the HPC40 Series with any of our ready to use pump systems, to provide a complete calibration kit.


  • Documentation +

  • Video +

    ProductVideoMessage

  • Application Notes / How To Guides +

    • Wind Turbine Testing

      The HPC40 Series is used to calibrate hydraulic systems found in wind turbines

  • Options +

      • BARO BARO Module – Converts gauge pressure measurement to the absolute scale.
    • System A & B Pump Systems
      System A
      • AHX Pump System: Includes a T-970 pneumatic hand pump (0 to 580 psi / 40 bar)
      • AXX Pump System: Includes a T-960 pneumatic hand pump (0 to 30 psi / 2 bar)
    • System A & B Pump Systems
      System B
      • BHX Pump System: Includes a T-975 pneumatic hand pump (-25 inHg to 580 psi / - 0.91 to 40 bar)
      • BXX Pump System: Includes a T-965 pneumatic hand pump (-25 inHg to 30 psi / - 0.91 to 2 bar)
    • System C Pump System
      System C
      • CHX Pump System: Includes a T-620H Hydraulic Hand Pump (0 to 5000 psi)
      • CXX Pump System: Includes a T-620 Hydraulic Hand Pump (0 to 3000 psi)
    • System D Pump System
      System D
      • DOX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with oil)
      • DWX Pump System: Includes a P-018-CPF hydraulic screw pump (0 to 5000 psi, for use with water)
    • System E
      System E
      • EOX Pump System: Includes a P-014 hydraulic bench top pump (0 to 10 000 psi, for use with oil)
    • System F Pump System
      System F
      • FOV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with oil)
      • FWV Pump System: Includes a T-1 hydraulic bench top pump (0 to 15 000 psi, for use with water)
    • System G Pump Systems
      System G
      • GOX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with oil)
      • GWX Pump System: Includes a GaugeCalHP hydraulic pressure comparator (0 to 15 000 psi, for use with water)
    • System H Pump Systems
      System H
      • HOX Pump System: Includes a T-975 Pneumatic Hand Pump (-25 inHg to 580 psi / - 0.91 to 40 bar) and a T-620H Hydraulic Hand Pump (0 to 5000 psi / 350 bar)
  • Accessories +

      • APM-CPF Modules 7 ranges from vacuum to 15 000 psi / 1000 bar
      • 104203 Test Leads with Black and Red Clips (included)
      • 5241 Protective Boot (included)
      • 3951 USB A to Mini USB Cable for HPC40 Series, HPC50 Series, and nVision (included)
      • 5203 Magnetic Hanging Strap for XP2i, m1, 30 Series, HPC40 Series, and HPC50 Series
      • 3009 Hard Carrying Case – egg crate foam
      • 2888 Weatherproof Hard Carrying Case – die cut foam
      • 127387 RTD Probe, Pt100
      • 124716 4AA Rechargeable Batteries (pack of 4)
  • Software +

    • CrystalControl

      CrystalControl – Free Software, Communicate, Configure, Data Log (nVision), and Update your nVision, HPC40, HPC50

    • UnitCalc

      UnitCalc (Free) – Easy pressure unit calculator. Displays all conversion factors and converted units at the same time. UnitCalc also calculates Head Correction, Gravity Correction, and Air Density

  • Release Notes +

      • Version R150117 28-Sep-20. Fixed: 1) Disabled a calibration warning screen that the user could not remove.
      • Version R150115 04-Sep-20. Added: 1) Improved the battery life indicator to more accurately reflect the remaining time. Fixed: 1) Improved Interface to the electrical modes, including VDC scaling.
      • Version R150113 17-Apr-17. Fixed: 1) Allowable upper limit for the RTD reading, 2) Fixed reading error when using a 4 wire RTD.
      • Version R150109 01-Oct-15. Fixed: 1) Slow filter response on RTD, 2) Fixed % Error bug using APM and RTDs.
      • Version R150105 26-Sep-15. Fixed: 1) User-defined unit zero error, 2) DP display now remembers the last pressure unit, 3) Fixed units issue with scaling, 4) Switching temperature scales no longer changes VDC reading, 5) Scaling resolution of upper and lower are now matched.
      • Version R150103 23-Jan-15. Initial Release.
