1700 Series Temperature Sensors

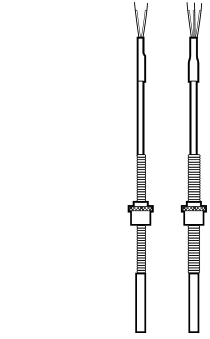

1700 Series Temperature Sensor
The 1700 Series Industrial Temperature Sensors consist of thermocouple and resistance thermometer assemblies with cables, for use up to 400°C. They are available with fixed or adjustable process connections and used for both low and medium-high temperature.

Five different models cover a wide range of fields and applications:

• Plastic industry
• Machinery and tool industries
• Laboratories and experimental plants
• Machinery – chemical apparatus
• Containers – pipelines and chemical apparatus



  • Documentation +

  • Options +

      • 1701 Type KT 1 and KT 2 – Thermocouple KT 1 and KT 2 with cable and bayonet socket. Use for temperature measurement and surveillance on plastic extruders and tools and machine constructions. Surfaces up to 180°C
      • 1704 Type KT 4 – Thermocouple KT 4 with cable sensor. Use for temperature measurement in ducts, pockets, machine construction containers, environmental chambers and test. Solid, fluid, and gaseous media up to 400°C
      • 1706 Type KM 1 – Resistance Thermometer KM 1 with cable and bayonet socket. Use for temperature measurement and surveillance on plastic extruders and tools and machine constructions. Surfaces up to 180°C
      • 1710 Type KM 4 – Resistance Thermometer KM 4 with cable sensor. Use for temperature measurement in ducts, pockets, machine construction containers, environmental chambers and test. Solid, fluid, and gaseous media up to 400°C
      • 1711 Type KM 5 – Resistance Thermometer KM 5 with cable sensor with fixed thread or swivel. Use for temperature measurement in ducts, pockets, machine construction containers, environmental chambers and test. Solid, fluid, and gaseous media up to 400°C
